从通用的triangle mesh生成quad mesh. quad mesh容易插值和细分(样条曲面和 Catmull-Clark细分曲面常⻅ 的定义域就是四边形)
quad-mesh 定义
- 由多个topological rectangle构成,每个rectangle interior是regular grid.
- topological rectangle:由复平面的rectangle做conformal(holomorphic) map变形得到
- Conformal map(保角映射) 从几何方面描述: grid映射成正交的curve
- holomorphic map(全纯函数) 从分析方面描述: $\mathbb C\rightarrow \mathbb C$ , 在任意一点可导

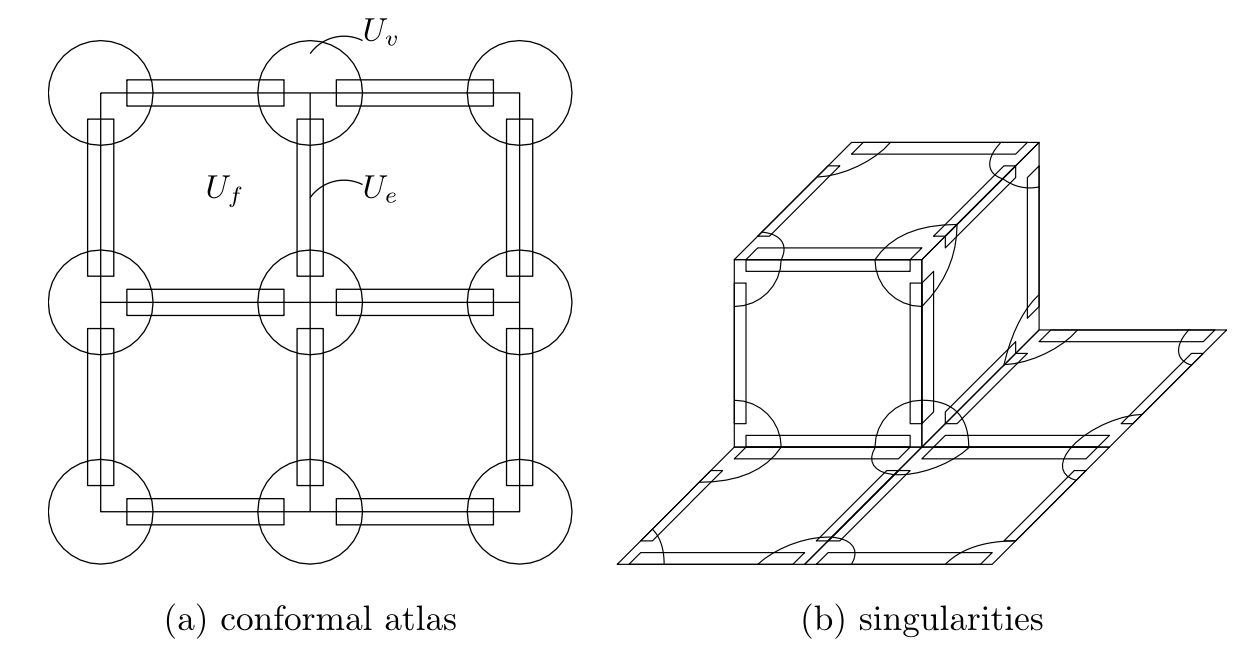

- 通过在quad-mesh上定义conformal atlas , 得到quad- mesh是Riemann surface(see quad.2 Theorem 4.6)
- chart: 每个face 的 interior定义$U_f$ , edge邻域定义$U_e$ , vertex邻域定义$U_v$
- transition: 每两个chart之间的transition(face->edge, edge->vertex, face->vertex)都是$\pi/2$ 的旋转+平移, 是holomorphic的
- topological rectangle:由复平面的rectangle做conformal(holomorphic) map变形得到
等价条件
conditions
- Riemann surface($\Sigma,g$) with cone singularities($\mathcal S$) 是quad mesh($\mathcal Q$) 的等价条件1 :
- Gauss-Bonnet condition : 在singularities处的total curvature符合Gauss-Bonnet Theorem
- $\sum_{v_i} (4-k(v))\frac{\pi}{2}=2\pi\chi(\Sigma)=2\pi(2-2g)$
- LHS: closed surface, 在singularities处的curvature是$(4-k(v))\frac{\pi}{2}$ , 其他地方的curvature=0
- RHS: Euler Character = 2-2g
- $\sum_{v_i} (4-k(v))\frac{\pi}{2}=2\pi\chi(\Sigma)=2\pi(2-2g)$
- holonomy condition: 一个cross frame沿loop平行移动, 方向旋转的⻆度为pi/2的整数倍.存在一个global smooth的cross field.
- holonomy group : $Hol(\Sigma\backslash\mathcal S,g)={e^{i\frac{k\pi}{2}},k\in\mathbb Z}\simeq \mathbb Z^3$
- cross field指$\Sigma$ 的tangent bundle上的 Levi-Civita connection
- boundary alignment condition: boundary和cross field是平行或垂直关系
- finite geodesic lamination condition: 沿cross field的geodesic是有限⻓的
- Gauss-Bonnet condition : 在singularities处的total curvature符合Gauss-Bonnet Theorem
- 等价关系推导:
- quad mesh -> conditions(see quad.1 Theorem 3.7):
- 取cross field平行于edges
- 每次穿过不同chart时, 只会转$\pi/2$ 的整数倍
- geodesic不会进入同一个face多过两次, face数是又有限的, 所以geodesic也是finite的.
- 取cross field平行于edges
- Riemann surface with conditions -> quad mesh(see quad.1 Theorem 3.8):
- 从singilarities出发, 沿cross field的geodesics形成quad mesh
- quad mesh -> conditions(see quad.1 Theorem 3.7):
meromorphic quartic differential
- Riemann surface with cone singularities是quad mesh的等价条件 2:
- closed quad-mesh等价于存在meromorphic quartic differential with finite trajectories
- 从文章看, quartic differential $(dz)^4$ 似乎并不是指外积 $\wedge^4 dz$
- 从quartic differential $\omega=f(z)(dz)^4$, 对应differential 1-form $\sqrt[4]{\omega}=f(z)^{\frac{1}{4}}dz$
- closed quad-mesh等价于存在meromorphic quartic differential with finite trajectories
- 等价关系推导:
- quad mesh -> meromorphic quartic differential(see quad.2 Theorem 4.7 ):
- locally 在一个face 上定义 $(dz_f)^4$ , 可以consistent的定义在其他face, edge, vertex(包括singularities)的chart上
- meromorphic quartic differential -> conditions(see quad.2 Theorem 4.8 ):
- 取cross field(condition.2)为meromorphic quartic differential的horizontal & vertical trajectories(see qaud.2 Definition 3.13 )
- 使$\omega=f(z)(dz)^4$ 值是real的方向, 如果$w=z(dz)^4=c(d(z^{\frac{5}{4}}))^4$ , 有5个方向, $\theta=\frac{k2\pi}{5}$
- 取cross field(condition.2)为meromorphic quartic differential的horizontal & vertical trajectories(see qaud.2 Definition 3.13 )
- quad mesh -> meromorphic quartic differential(see quad.2 Theorem 4.7 ):
divisor
- divisor 对应meromorphic quartic differential的等价条件3:
- divisor和一个holomorphic 1-form在Abel-Jacobian map下的值相等, $\mu(D-4(\omega_0))=0$
- $(\omega_0)$ 为holomorphic 1-form的zeros
- Abel-Jacobian map ($\Sigma\rightarrow \Omega^1(\Sigma)^*/\Lambda$ )
- $\mu:p\mapsto \int_{p}^{p_0}\cdot$
- 因此可以定义在divisor上, ($Div(\Sigma)\rightarrow \Omega^1(\Sigma)^*/\Lambda$ ), $\mu:\sum_{i=1}^n n_ip_i\mapsto \sum_{i=1}^n n_i\int_{p_i}^{p_0}\cdot$
- $\Omega^1(\Sigma)$ 为holomorphic 1-form的线性空间 , $\Omega^1(\Sigma)^*$ 是它的对偶空间
- modulo image of homology group(同调群) $H_1(\Sigma,\mathbb Z)$
- 记 $H_1(\Sigma,\mathbb Z)$ 的basis ${a_1,\dots,a_g,b_1,\dots,b_g}$ , 即$\Lambda=span{\int_{a_1}\cdot,\dots,\int_{a_g}\cdot,\int_{b_1}\cdot,\dots,\int_{b_g}\cdot}$
- 前半部分记为period matrix $A$, 后半部分记为period matrix $B$ (see quad.3 Definition 3.9)
- 记 $H_1(\Sigma,\mathbb Z)$ 的basis ${a_1,\dots,a_g,b_1,\dots,b_g}$ , 即$\Lambda=span{\int_{a_1}\cdot,\dots,\int_{a_g}\cdot,\int_{b_1}\cdot,\dots,\int_{b_g}\cdot}$
- $\mu:p\mapsto \int_{p}^{p_0}\cdot$
- divisor和一个holomorphic 1-form在Abel-Jacobian map下的值相等, $\mu(D-4(\omega_0))=0$
- 等价关系推导:
- quad mesh -> divisor condition(see quad.2 Theorem 4.11 ):
- divisor Q 对应的meromorphic quartic differential($\omega_Q$) 可以拆分成 $\omega_Q=f\cdot \omega_0^4$
- 其中$\omega_0$ 是任意holomorphic 1-form, $f$ 是meromorphic function
- meromorphic function $f$ 对应principle divisor $(f)$ , $\mu((f))=0$
- divisor Q 对应的meromorphic quartic differential($\omega_Q$) 可以拆分成 $\omega_Q=f\cdot \omega_0^4$
- quad mesh -> divisor condition(see quad.2 Theorem 4.11 ):
从divisor生成quad-mesh的方法
只考虑closed oriented surface的情况. 有边界和non-oriented(Mobius strip)的情况类似.
生成T-mesh $T=(V,E,F)$
- 从triangle mesh计算homology group(同调群) $H_1(\Sigma,\mathbb Z)$ 的basis ${a_1,\dots,a_g,b_1,\dots,b_g}$ ,
- 通过reset height function构造Reeb graph抽卡保证$a_i$ 只和$b_i$ 相交(canonical basis, see 4)
- 得到holomorphic 1-form basis $\Omega^1(\Sigma)$ (see 5)
- loop $\gamma$ -> discrete closed 1-form $\lambda_{\gamma}=dg_{\gamma}$ -> harmonic 1-form $\omega_{\gamma}$ -> holomorphic 1-form $\phi_{\gamma}$
- 由Riemann-Roch theorem, $l(D)-l(K-D)=deg(D)+1-g$, 令$D=0$, 得到 $l(K)=g$ , 即我们得到的是一组basis
- 得到一个holomorphic 1-form $\phi$
- 得到period matrix A, B: $\phi$ 在canonical 1-form basis展开的系数
- loop $\gamma$ -> discrete closed 1-form $\lambda_{\gamma}=dg_{\gamma}$ -> harmonic 1-form $\omega_{\gamma}$ -> holomorphic 1-form $\phi_{\gamma}$
- 得到cut graph $\Gamma$
- 生成singularity set $\mathcal S$
- 在surface上选择initial singularities
- maximal Gaussian curvature as poles, or with minimal curvature as zeros
- 先添加一些zeros, poles, 使其满足Gauss-Bonnet condition
- local maximal Gaussian curvature as poles, or with local minimal curvature as zeros
- 优化这些点, 使其满足Abel–Jacobi condition: 对应一个meromorphic quartic differential
- 等价于: divisor $D$ 和 $4(\phi)$ linearly equivalent, 即相差一个meromorphic function
- 等价于: $D$ 和 $4(\phi)$ 在Abel-Jacobian map的值相等
- 用gradient descent优化 $\mu(D-4(\phi))$
- 在surface上选择initial singularities
- 把$\mathcal S$ 做为divisor生成一个meromorphic quartic differential $\omega$
- 计算cutgraph: $\Gamma\ \cup\ {\cup_{i=1}^k \gamma_i}$ (see quad.3 4.1.7 )
- 其中$\Gamma$ 为homology group ${a_1,\dots,a_g,b_1,\dots,b_g}$ 的union
- ${\cup_{i=1}^k \gamma_i}$ 是sigularities $p_i$ 到cutgraph $\Gamma$ 的最短path
- 得到沿上面cutgraph切开的foundamental domain $\tilde \Sigma$
- 计算foundamental domain $\tilde \Sigma$ 到平面$\mathbb C$ 的isometric immersion $\psi$ (see 6)
- 用Newton method优化每个vertex上的conformal factor $u_i$
- complex domain上的$dz^4$, 用$\psi$ pull back, 得到 $\omega=\psi^* dz^4$ 为$\Sigma$ 上的一个meromorphic quartic differential
- 计算cutgraph: $\Gamma\ \cup\ {\cup_{i=1}^k \gamma_i}$ (see quad.3 4.1.7 )

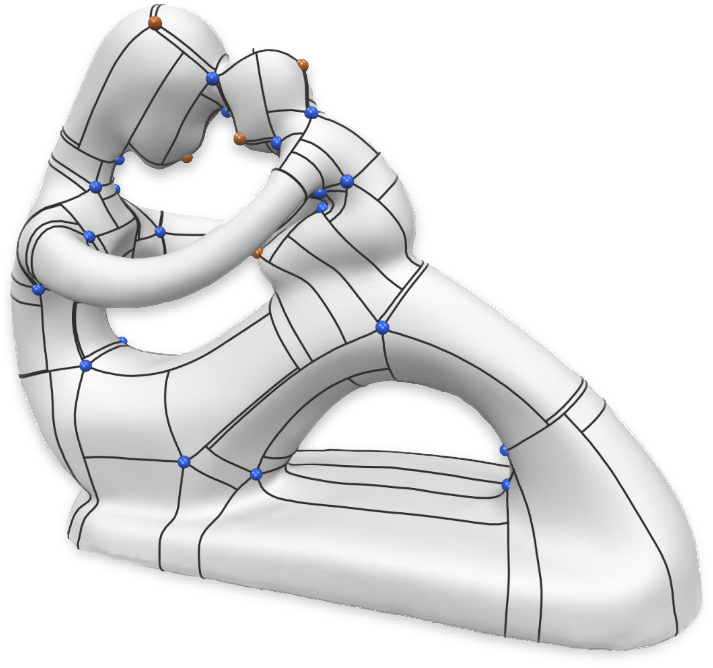

- 从 $\omega$ 上$S$的横竖方向trace得到T-mesh(see 7)

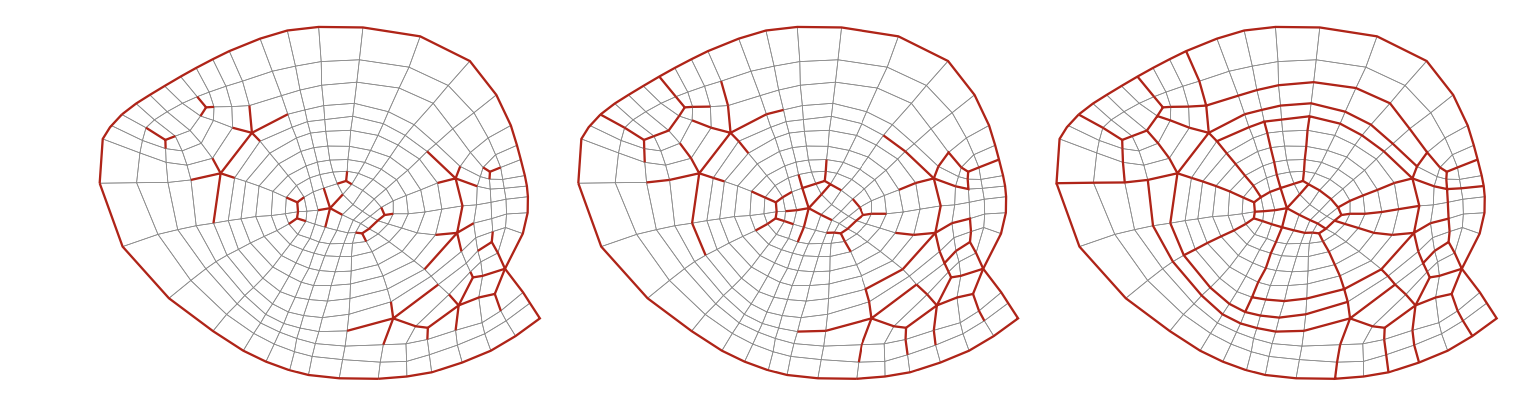

T-mesh 形成过程:
生成quad-mesh: 把每个rectangle划分成grid方格
- 解$\downarrow$ 构成的线性系统方程
- 约束:
- singularity position constraints: 共2(S-1)个(singularity set $\mathcal S$ )
- $v_0$ 到$v_i$ 的path在horizontal, vertical 方向是有理数 (由path经过的edge组成 )
- deck transformation constraints: 共2x2g个
- ${a_1,\dots,a_g,b_1,\dots,b_g}$ 对应的路径在horizontal, vertical 方向是有理数
- face constraints: 共2(F-1)个
- 四边形相对边等长
- singularity position constraints: 共2(S-1)个(singularity set $\mathcal S$ )
- 变量: 边长的改变量 ${x_e:e\in E}$
- 约束:
reference
[quad.1] Chen, Wei, Xiaopeng Zheng, Jingyao Ke, Na Lei, Zhongxuan Luo, and Xianfeng Gu. “Quadrilateral Mesh Generation I : Metric Based Method.” Computer Methods in Applied Mechanics and Engineering 356 (November 2019): 652–68. https://doi.org/10.1016/j.cma.2019.07.023.
[quad.2] Lei, Na, Xiaopeng Zheng, Zhongxuan Luo, Feng Luo, and Xianfeng Gu. “Quadrilateral Mesh Generation II: Meromorphic Quartic Differentials and Abel–Jacobi Condition.” Computer Methods in Applied Mechanics and Engineering 366 (July 2020): 112980. https://doi.org/10.1016/j.cma.2020.112980.
[quad.3] Zheng, Xiaopeng, Yiming Zhu, Wei Chen, Na Lei, Zhongxuan Luo, and Xianfeng Gu. “Quadrilateral Mesh Generation III : Optimizing Singularity Configuration Based on Abel–Jacobi Theory.” Computer Methods in Applied Mechanics and Engineering 387 (December 2021): 114146. https://doi.org/10.1016/j.cma.2021.114146.
[4] K, DeyTamal, FanFengtao, and WangYusu. “An Efficient Computation of Handle and Tunnel Loops via Reeb Graphs.” ACM Transactions on Graphics (TOG), July 21, 2013. https://doi.org/10.1145/2461912.2462017. 计算homology group
[5] ACM Other conferences. “Global Conformal Surface Parameterization Proceedings of the 2003 Eurographics/ACM SIGGRAPH Symposium on Geometry Processing.” World. Accessed June 5, 2024. https://doi.org/10.5555/882370.882388. 计算holomorphic 1-form basis
[6] Jin, Miao, Junho Kim, Feng Luo, and Xianfeng Gu. “Discrete Surface Ricci Flow.” IEEE Transactions on Visualization and Computer Graphics 14 (September 1, 2008): 1030–43. https://doi.org/10.1109/TVCG.2008.57. 计算foundamental domain的参数化
[7] Eppstein, David, Michael Goodrich, Ethan Kim, and Rasmus Tamstorf. “Motorcycle Graphs: Canonical Quad Mesh Partitioning.” Comput. Graph. Forum 27 (July 1, 2008): 1477–86. https://doi.org/10.1111/j.1467-8659.2008.01288.x. 计算T-mesh
