stable-diffusion中 k-sampling的不同版本 (一 )

2 min read

Categories

Tags

Table of Contents

Related Posts

背景知识

PID(Proportion/ Integration/ Differentiation) Control

$f=k_p\cdot e +k_i\cdot \int_0^t e+k_d\cdot \frac{de}{dt}$

  • $e=r(\text{desired})-y(\text{measure})$ 是系统距离调解目标值的error
    • $k_p\cdot e$ 是比例控制项, 向desire方向进行控制
    • 积分项表示error的大方向
      • pro: 如果控制是阶梯式的, 单独使用比例项控制可能会出现稳态误差, 用积分项可以消除这个问题
      • con: 可能会增加系统的滞后性
    • 微分项监测error的变化过程
      • 如果error不断减小, 控制也随之减弱, 增强系统的稳定性(阻尼)

Sampling

按照forward process 是SMLD计算

DPM-Solver

用$\epsilon$ 的Taylor expansion近似

$\begin{align} x_{i-1}&=x_i-\int_{\lambda_i}^{\lambda_{i-1}} e^{-\lambda_\tau}\epsilon(x_{\tau_\lambda},\sigma_{\tau_\lambda}) d\lambda &\\ &\approx x_i -\int_{\lambda_i}^{\lambda_{i-1}} e^{-\lambda_\tau} \sum_{n=0}^{k-1} \frac{(\lambda-\lambda_i)^n}{n!}\epsilon^{(n)}(x_i,\sigma_i) d\lambda \\ &= x_i -\sum_{n=0}^{k-1} \epsilon^{(n)}(x_i,\sigma_i) \int_{\lambda_i}^{\lambda_{i-1}} e^{-\lambda_\tau} \frac{(\lambda-\lambda_i)^n}{n!} d\lambda \\ &= x_i -e^{-\lambda_{i-1}}\sum_{n=0}^{k-1} \epsilon^{(n)}(x_i,\sigma_i) \int_{\lambda_i}^{\lambda_{i-1}} e^{-(\lambda-\lambda_{i-1})} \frac{(\lambda-\lambda_i)^n}{n!} d\lambda \\ &= x_i -\sigma_{i-1}\sum_{n=0}^{k-1} \epsilon^{(n)}(x_i,\sigma_i) \int_{0}^{h} e^h e^{-s} \frac{s^n}{n!} ds & \text{(令}h=\lambda_{i-1}-\lambda_i) \\ &= x_i -\sigma_{i-1}\sum_{n=0}^{k-1} \epsilon^{(n)}(x_i,\sigma_i) (e^h-\sum_{m=0}^{n} \frac{h^m}{m!}) & \int_{0}^{h} e^{-s} s^n ds=\gamma(n+1,s) \\ &\approx x_i -\sigma_{i-1}((e^h-1)\cdot \epsilon +(e^h-1-h)\cdot \epsilon^{(1)}+(e^h-1-h-\frac{h^2}{2})\cdot \epsilon^{(2)}) &\text{(只取前3阶)}\end{align}$

  • $\int_0^h e^{-s}s^nds$ 可以由integration by parts得到, $\gamma(n+1,s)$ 为incomplete gamma function
  • $\epsilon^{(1)}$ 和$\epsilon^{(2)}$ 由$\epsilon$ 在$\lambda_i\rightarrow \lambda_{i-1}$ 的二分点(dpm-solver-2)和三分点(dpm-solver-3)Taylor 展开计算得到
    • DPM-Solver-2: $x_{i-1}\approx x_i-\sigma_{i-1}(e^h-1)\cdot\epsilon(x_i,\sigma_i)-\frac{\sigma_{i-1}}{2r}(e^h-1)(\epsilon(u_i,s_i)-\epsilon(x_i,\sigma_i))$
      • $(u_i,s_i)$ 为二分点处的$x$ 和$\sigma$
      • $r$ 为分割比例, 一般可以让$r=1/2$
        • 此时, $x_{i-1}\approx x_i-\sigma_{i-1}(e^h-1)\cdot\epsilon(u_i,s_i)$

DPM-Solver++

$x_{i-1}=\frac{\sigma_{i-1}}{\sigma_i}x_i-(e^{-h}-1)((1+\frac{1}{2r})\cdot D(x_i,\sigma_i)-\frac{1}{2r}D(u_i,s_i))$

  • 中间改为直接用$D(x,\sigma)$ 表示而不是$\epsilon$ 表示
    • 和DPM-Solver的形式可以互相推导, 结果近似但不是完全等价(2S版本(Singlestep), see DPM-Solver++ Appendix B )
    • 取k=1, 也可以推出DDIM的形式
  • 和DPM-Solver-2类似, 不过不是取二分点, 而是把$x_{i+1}$ 做为$x_{i}$ 和$x_{i-1}$ 的二分点: $D(u_i,s_i)=D(x_{i+1},\sigma_{i+1})$ (2M版本(MultiStep))
  • $r=\frac{\lambda_{i+1}-\lambda_i}{\lambda_i-\lambda_{i-1}}$ 为 $\lambda_{i}\rightarrow \lambda_{i+1}\rightarrow \lambda_{i-1}$ 的比例, 因为$\lambda_{i+1}$ 在$\lambda_i,\lambda_{i-1}$ 的同侧, 和DPM-Solver-2的方向相反

UniPC(Unified Predictor-Corrector)

  • 把DPM-Solver++推广到任意高阶
  • UniC是在$x_i$ 和$x_{i-1}$ 之间的n分点(像DPM-Solver一样), UniP是$x_{i+k}$ 历史数据(像DPM-Solver++一样)

lcm(latent Cosistency Model)

  • 每次直接把$D(x,\sigma)$ 做为预测, 不用reverse diffusion而是一步到位
  • 模型需要重新训练微调才能支持

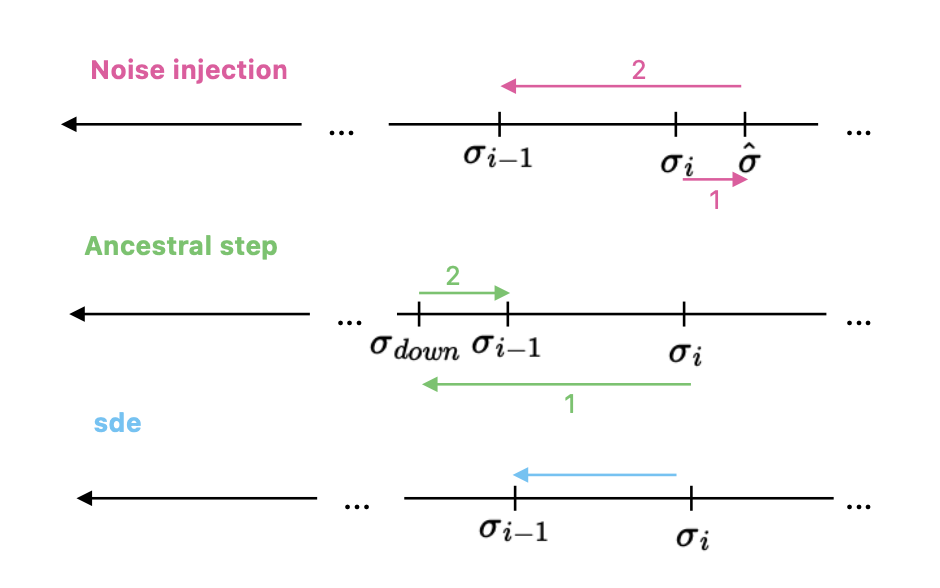

添加 noise 的不同方法

Pasted image 20240702162954.png

  • noise injection(没有后缀的情况): 先添加随机项
    • increase noise: $\hat \sigma$ : $\hat \sigma\leftarrow \sigma_i + \gamma\sigma_i$
    • forward step $\sigma_{i}\rightarrow \hat \sigma$
      • SMLD的情况: $\hat x=x_i+\sqrt{\hat \sigma^2-\sigma_i^2}\cdot z, z\sim N(0,1)$
    • backward step $\sigma_{i-1}\leftarrow \hat \sigma$
  • ancestral step(_A, _ancestral): 后添加随机项
    • backward step $\sigma_{down}\leftarrow \sigma_i$
    • add noise $\sigma_{up}$
  • sde(_sde): 后添加随机项, 严格按照SDE的公式
    • 用BrownianTreeNoiseSampler 生成noise $z$
    • 随机项为$\sigma_i\sqrt{1-e^{-2h}}\cdot z$ (按照DPM-Solver++的推导)

其他

  • cfg++ ?

reference

[1 ] Karras, Tero, Miika Aittala, Timo Aila, and Samuli Laine. “Elucidating the Design Space of Diffusion-Based Generative Models.” arXiv, October 11, 2022. https://doi.org/10.48550/arXiv.2206.00364. Euler, Heun method

[2] Lu, Cheng, Yuhao Zhou, Fan Bao, Jianfei Chen, Chongxuan Li, and Jun Zhu. “DPM-Solver: A Fast ODE Solver for Diffusion Probabilistic Model Sampling in Around 10 Steps.” arXiv, October 13, 2022. https://doi.org/10.48550/arXiv.2206.00927.

[3] Lu, Cheng, Yuhao Zhou, Fan Bao, Jianfei Chen, Chongxuan Li, and Jun Zhu. “DPM-Solver++: Fast Solver for Guided Sampling of Diffusion Probabilistic Models.” arXiv, May 6, 2023. https://doi.org/10.48550/arXiv.2211.01095.

[4] Zhao, Wenliang, Lujia Bai, Yongming Rao, Jie Zhou, and Jiwen Lu. “UniPC: A Unified Predictor-Corrector Framework for Fast Sampling of Diffusion Models,” 2023. https://openreview.net/forum?id=hrkmlPhp1u&referrer=%5Bthe%20profile%20of%20Jie%20Zhou%5D(%2Fprofile%3Fid%3D~Jie_Zhou3).

[4] Zhang, Qinsheng, and Yongxin Chen. “Fast Sampling of Diffusion Models with Exponential Integrator.” arXiv, February 25, 2023. https://doi.org/10.48550/arXiv.2204.13902. DEIS, ipndm

[5] Luo, Simian, Yiqin Tan, Longbo Huang, Jian Li, and Hang Zhao. “Latent Consistency Models: Synthesizing High-Resolution Images with Few-Step Inference.” arXiv, October 6, 2023. https://doi.org/10.48550/arXiv.2310.04378. LCM

[5] 代码: https://github.com/zju-pi/diff-sampler 一些sampler

[6] 代码: https://github.com/comfyanonymous/ComfyUI/blob/master/comfy/k_diffusion/sampling.py https://github.com/comfyanonymous/ComfyUI/blob/master/comfy/samplers.py
